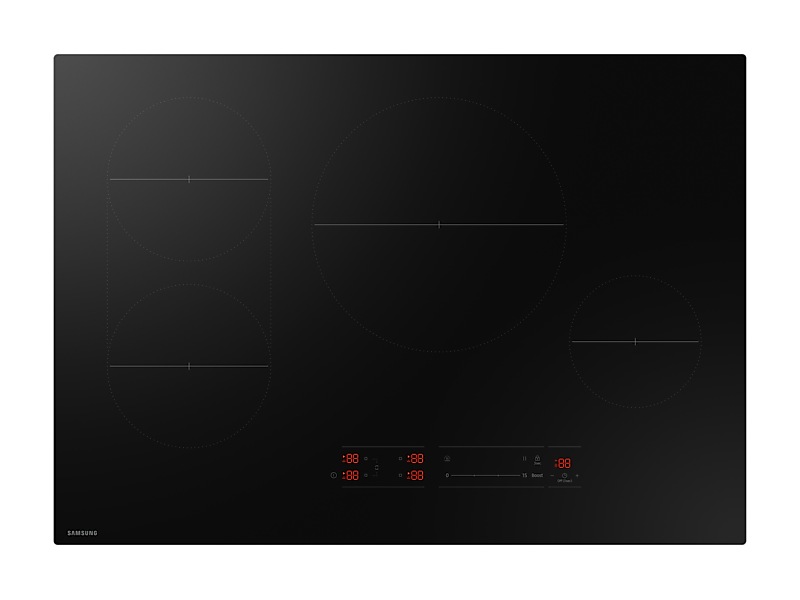

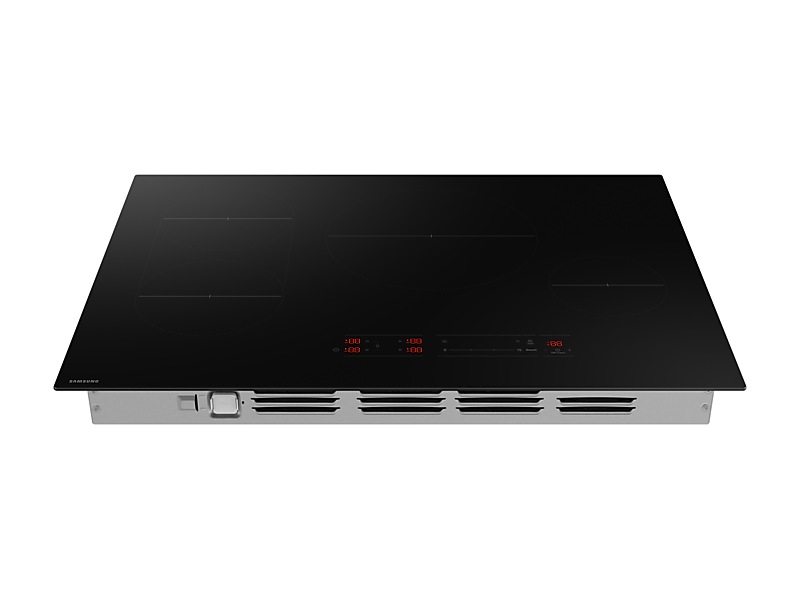

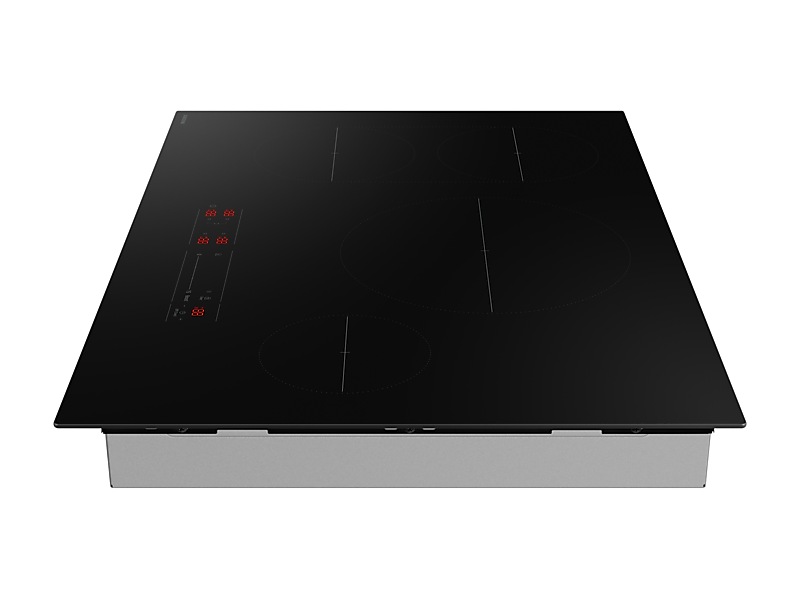

30" Samsung 4-Element Energy Star Smart Induction Cooktop - CC70F30S2DAA



Certified efficiency

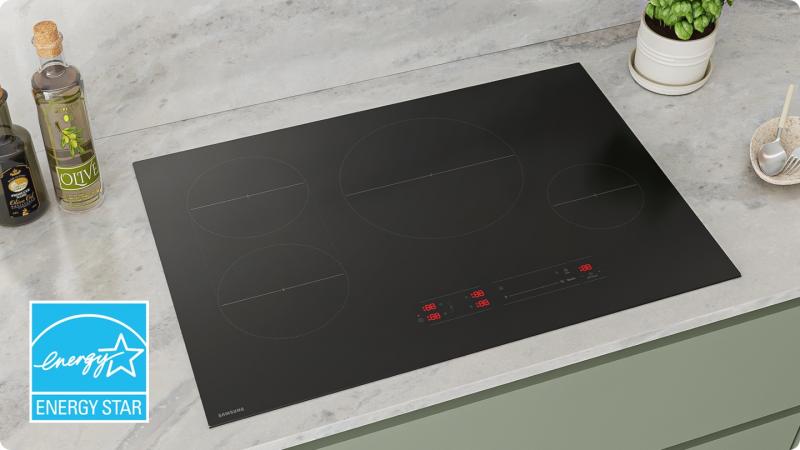

ENERGY STAR® Certified
The cooktop has been independently evaluated against strict power consumption specifications and ENERGY STAR® certified for energy efficiency.
* Visit www.energystar.gov for more information on ENERGY STAR® guidelines.

Scratch-resistant Glass
Anti-Scratch Glass

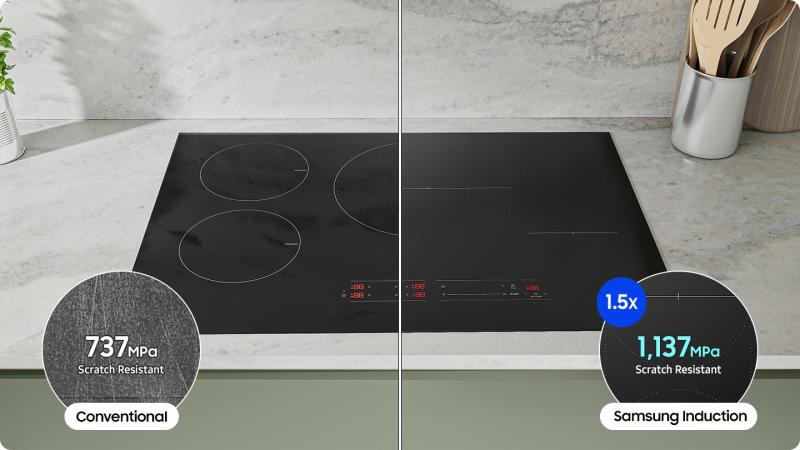

Its Anti-Scratch Glass has a high hardness rating and can withstand 1.5x more pressure without scratching compared to Samsung’s normal ceramic glass*. It is highly scratch resistant, so it is less likely to get marked and is easy to maintain.
* Based on testing by Samsung in accordance with ASTM G133-95, compared to the Samsung model NZ30A3060UK/AA with conventional glass. Results provided to and interpreted by Intertek. The test involves scratching on the cooktop with a stainless steel ball, with a 6mm diameter and made of SUS304 material, back and forth 10 times with increasing pressure (MPa), and then checking the surface with both the naked eye and a microscope to determine when a scratch is visible.

Smart and effortless cooking
SmartThings Food
Make your kitchen experience more joyful. SmartThings Food* makes cooking effortless. By understanding your needs, it recommends personalized recipes** and creates a weekly meal plan. It also offers a guided cooking experience and enables effortless grocery shopping***.
Design & Convenience

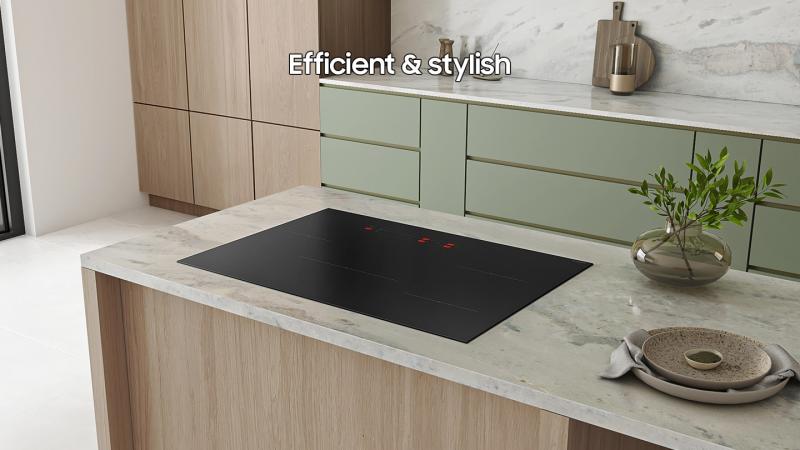

Stylish modern look

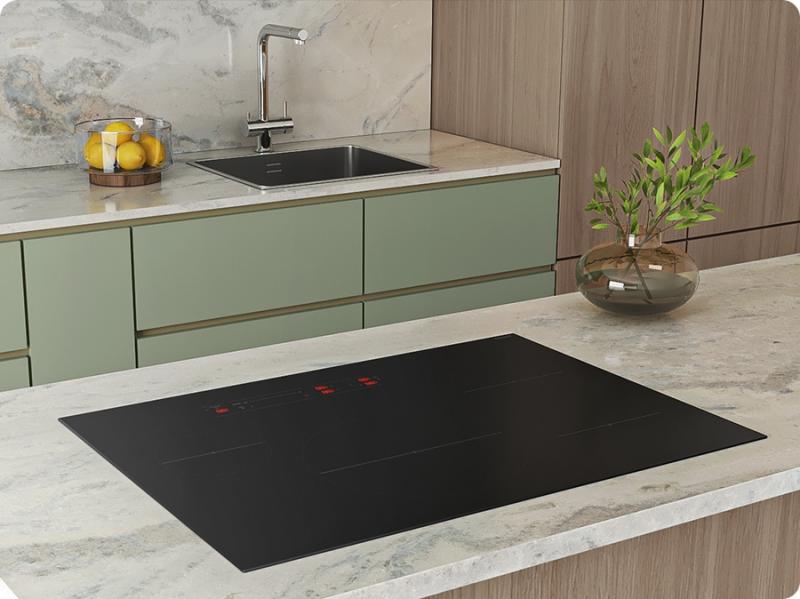

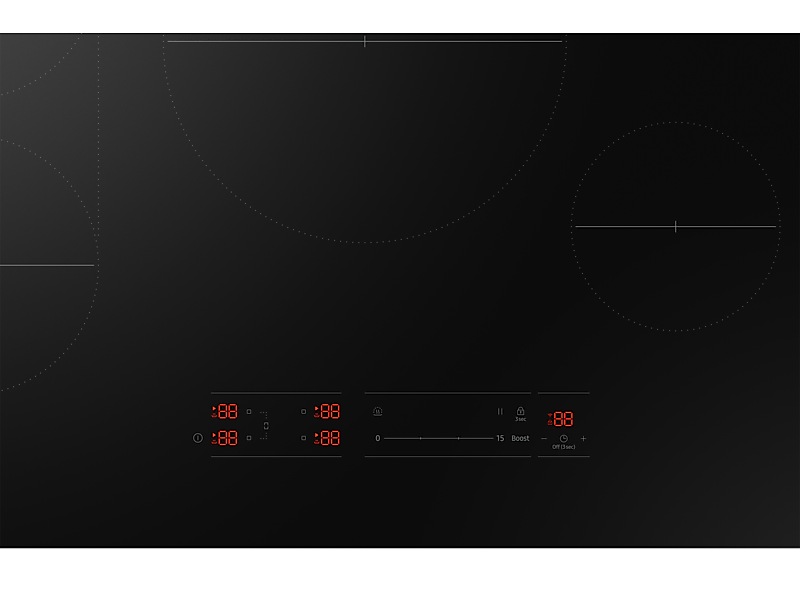

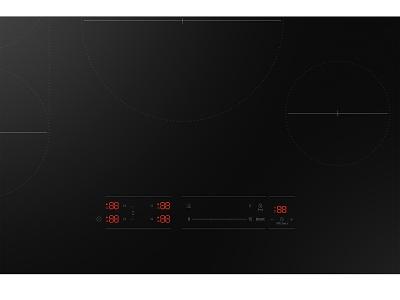

Give your kitchen a seamlessly minimalist and stylish modern look. The smooth glass surface includes a Glass Touch Control, so there are no control knobs that stick out. Its matte black finish also gives it a premium look that will blend in harmoniously with contemporary kitchen interiors.

Easily keep clean

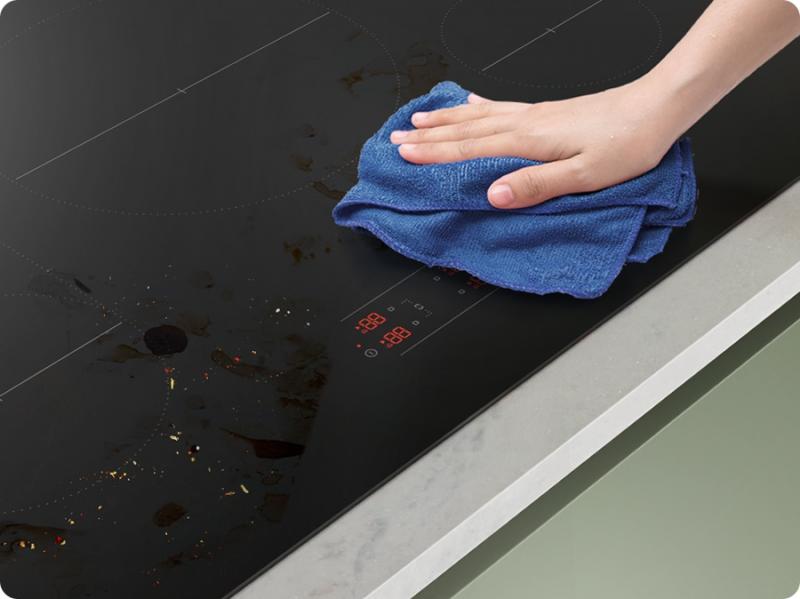

Easy to Clean
Keep the cooktop looking neat. Its smooth ceramic glass surface has a non-stick coating, so if there is spilled food, sauce splatters or grease stuck on the surface you can wipe the mess away with a cloth. It also has a special Fingerprint Resistant Finish that allows for fingerprint marks to be quickly wiped away with a damp cloth .

High-power cooking

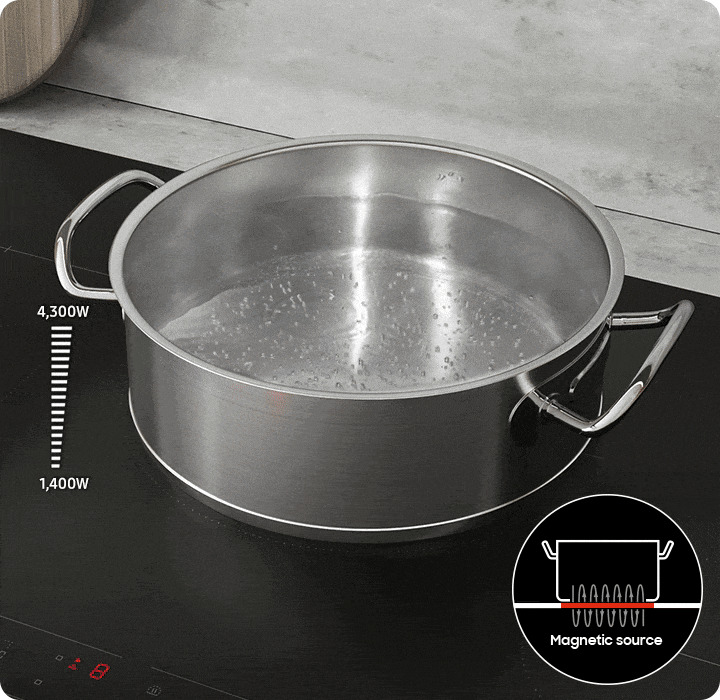

4.3kW Power Burner (Power Boost)

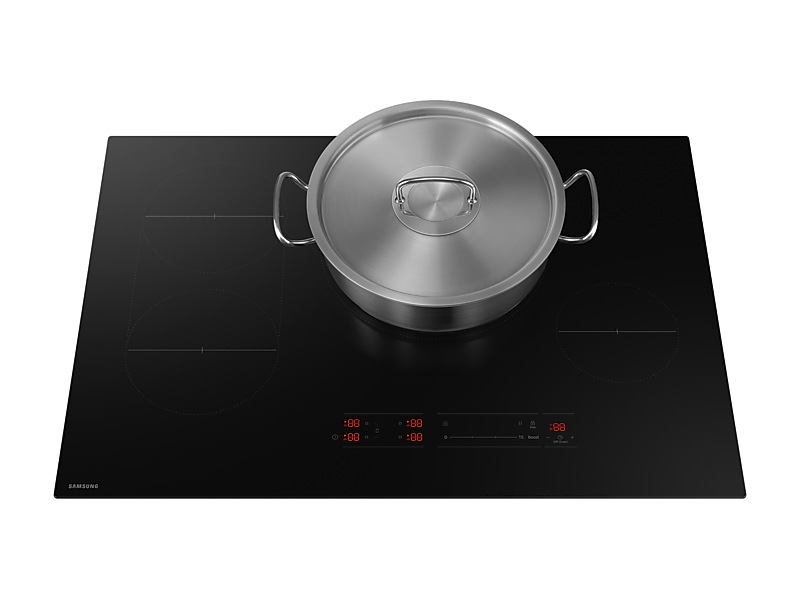

Cook food effortlessly*. The cooktop has a choice of induction burners**, including a powerful 4.3kW Power Burner, which provides intense heat and precise control. All of the burners also have a Power Boost function that gives a short extra boost of heat to speed up cooking.
* Based on internal testing in the Samsung Kitchen Lab. Test conditions: 3420g of water at 25°C brought to the boil at 90°C using 2.5kW output. Test results for the time elapsed: Induction cooktop (CC70F36S2DAA) = 8' 58" using 361.8W, Radiant cooktop (NZ30FG5332RKAA) = 9' 59" using 398.13W. ** Total output available is 7.1kW for the 30" model.

Powerful & flexible

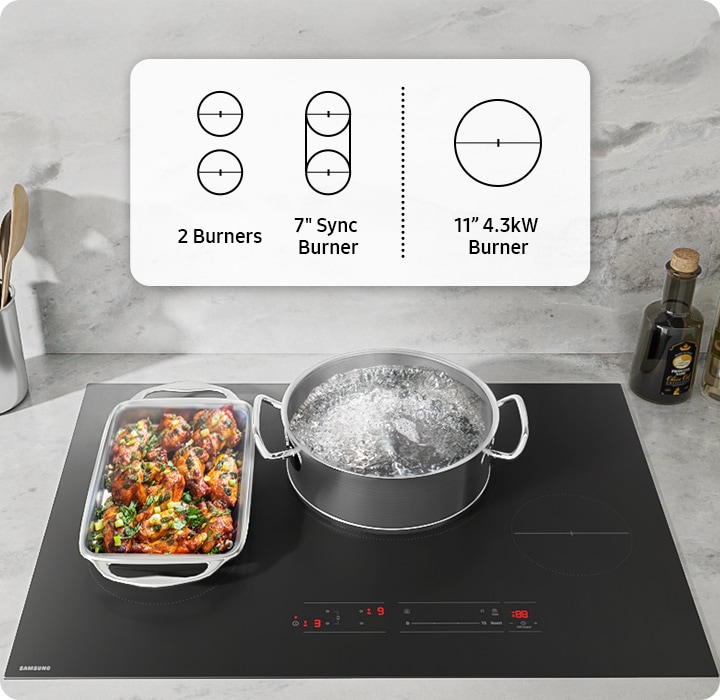

Sync Burner
Enjoy added control and flexibility. A Sync Burner lets you control two burners with one control, so they can be kept at the same power level at the same time. By synchronizing the operation of both burners they act as one long cooking zone, so you can quickly cook dishes using large cookware.
Connect and control
Routines
Save time and effort by automating how your cooktop works with other appliances*, like a hood. Routines in the SmartThings App** lets you connect and control appliances by creating customized routines that trigger multiple actions at set times or based on the activity of other appliances**.
* Appliances must be registered on the SmartThings App and connected by Wi-Fi. ** Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.

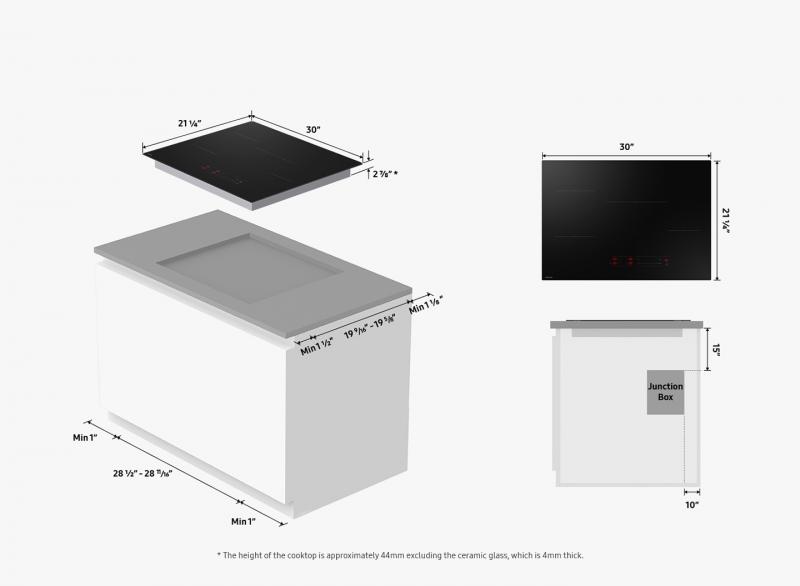

How to measure

* Please allow a minimum space of 5 inches between product and rear wall for vent duct installation.
Overview | |
---|---|
Control Method | Touch |
Cooktop Frame | Cut Edge |
Display Type | LED (Red) |
Materials/Finishes | Built-in |
Materials/Finishes | |
Model Type Install | Built-in |
Cooktop Frame | Cut Edge |
Control Method | Touch |
Display Type | LED (Red) |
Power/Ratings | |
Total Power (kW) | 7.1 kW |
Element - Left Front | 7", 1800 / Boost 2300 W |
Element - Left Rear | 7", 1800 / Boost 2300 W |
Element - Right Front | 6", 1200 / Boost 1500 W |
Element - Center | 11", 2300 / Boost 4300 W |
Qty of Power Boost | 4 |
Power Level | 15 + Boost |
Power Supply | 240V , 60Hz |
Energy Star Certification | Yes |
Features | |
Child Safety Lock | Yes |
Surface | Black Glass |
Sync Control | Yes |
Simmer/Melt | Yes |
Kitchen Timer | Yes |
Pause | Yes |
Residual Heat Indicator | Yes |
Safety Shutoff | Yes |
High Temp. Limit | Yes |
Sound on/off | Yes |
Virtual Flame On/Off | No |
Power On/Off | Yes |
COOKTOP | |
Number of Burner | 4 EA |
Hot Surface Indicator | No |
Smart | |
WiFi Embedded | Yes |
Auto Connectivity (with Hood) | No |
Weights/Dimensions | |
Package (WxHxD) | 870 x 185 x 636 mm |
Cutout (WxHxD) | W (724 ~ 728) x D (497 ~ 499) |
Net Size (W x H x D) (mm) | 762 x 108 x 540 mm |
Shipping Weight | 18.8 kg |
Net Weight | 16.8 kg |
Loading Quantity (20/40ft) | 264 / 540 |
