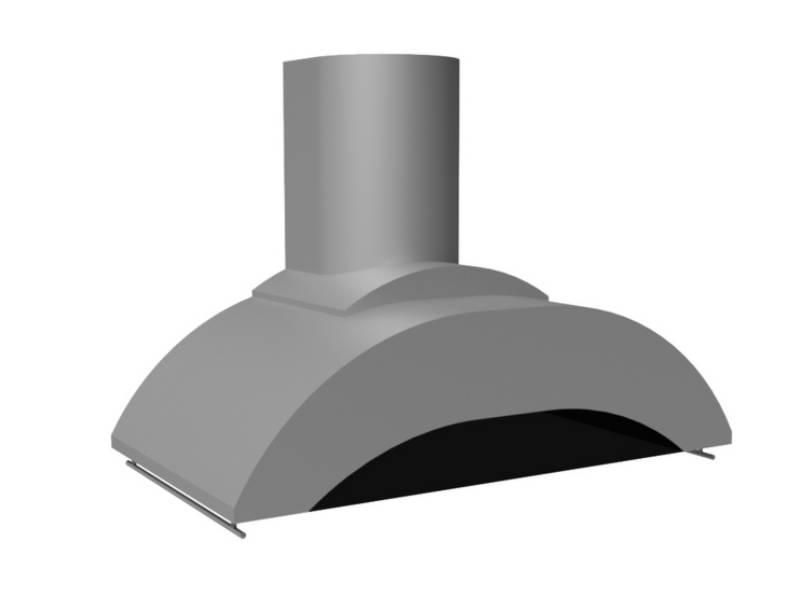

48" Vent-A-Hood Premier Magic Lung Contemporary Wall Mounted Hood - ZTH-248SS

Category : Ventilation
SKU : ZTH-248SS


Literature

ZTH - Premier Magic Lung® Contemporary Wall Mounted

Convex with black glass insert and pot rail styling. Available in stainless steel. Recommended mounting height 30" above the cooking surface. Shown with matching wall mount duct covers (sold separately), available in standard sizes for 7', 8', and 9' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit.

This model is equipped with LED lighting (one in each corner).

Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".

Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

Specifications
WIDTH :48"
DEPTH :24"
HEIGHT :14 3/8"
CFM :600
SONES :6.5
Amps :4.0
Num. Lights :4
