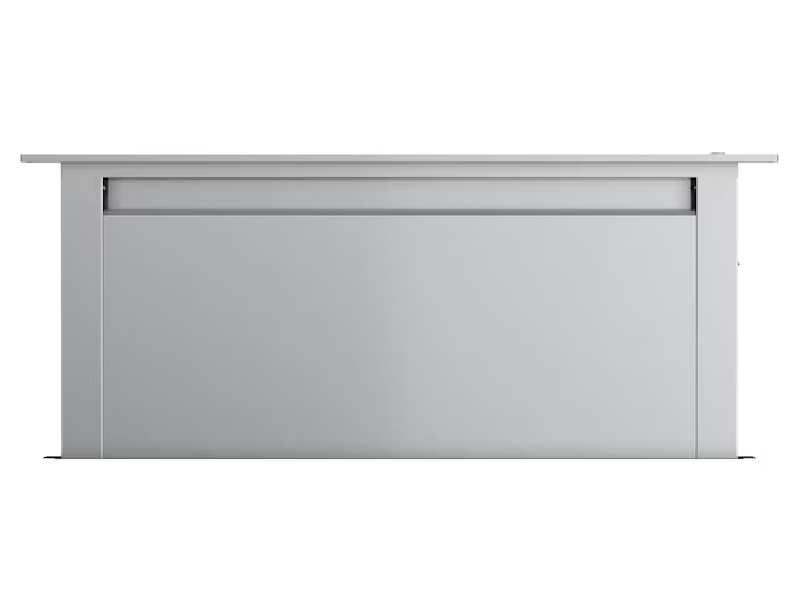

30" Zephyr Treviso Downdraft Ventilation - ZTV-E30AS

Category : Ventilation
SKU : ZTV-E30AS

30 36

Literature

The Treviso Downdraft is chic, simple, and simply spectacular. Out of sight when not in use for those coveted open kitchen sightlines, this one-and-done hidden downdraft has everything you need, and nothing you dont. A sleek, efficient louver makes this a very visually pleasing solution for nearly any kitchen.

Features

  • 14" Chimney Rise
  • 3-Way Ducting
  • Reversible Blower Housing
  • 3-Speed Mechanical Slide Controls
  • Auto On/Off
  • Airflow Control Technology (ACT)
  • Optional Recirculating Kit
  • Optional ADA-Compliant Up/Down Remote Control
Specification
Size30”
WARRANTY2 years parts, 1 year labor
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)200 - 600
Sones (Min. - Max.)2 - 6
ACT 390 CFM (Min. - Max.)200 - 390
Features
ACT™ Technology 390
ControlsMechanical Slide
Speed Levels3*
Auto On/Off**Yes
LightingNo
FiltersStainless Steel Mesh x2
14” Chimney RiseYes
Reversible Blower Housing***Yes
3-Way DuctingYes
Recirculating OptionYes
DUCT SPECIFICATIONS
Left/Right Ducting6” Round
Bottom Ducting6” Round
AC POWER120V, 60Hz at Max. 3.2A
